Multi Color Porcelain Suspension Insulator / Cap And Pin Insulator

Brand Name : HIVOLT
Model Number : L40BE200
Certification : CS/IEC
Place of Origin : CHINA
MOQ : Negotiable
Price : Negotiable
Supply Ability : 20,000pcs per month
Packaging Details : Wooden pallets or wooden crates
Delivery Time : 5-8 weeks after PO
material : porcelain C130
glaze color : brown
connection way : socket & socket
standard : IEC
package : woode pallet or crate
line voltage : 11kV,25kV,33kV
Contact Now

Porcelain long rod Insulators for transmission lines below 25kV, IEC standard


Description:


Technical Specifications for L40BE200 supension long rod insulator porcelain brown for EU market

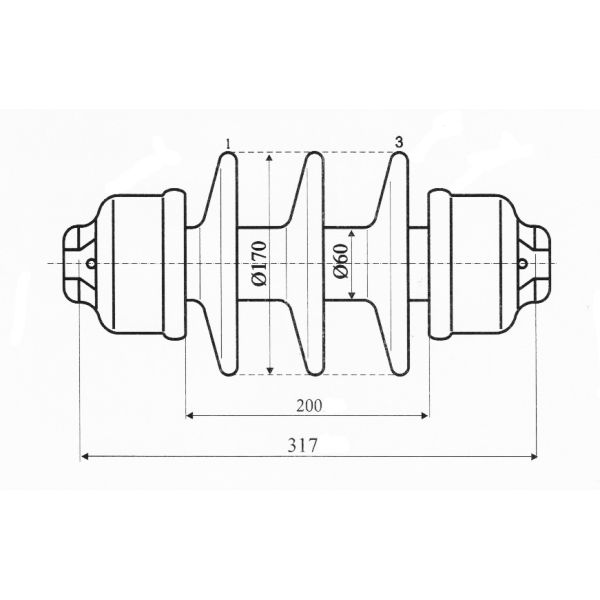

L40BE200 long rod suspension insulator


 Technical SpecificationUnitValue
1Spacingmm317
2Shed Diametermm170
3Creepage Distancemm450
4Mechanical failing load Strength Min.KN40
6Power Frequency withstand Voltage
 dryKV80
 wetKV50
7Lightning Impulse withstand Voltage
 PositiveKV125
 NegativeKV130

L40BE200 supension long rod insulator mainly used in the market of EU countries .HIVOLT product export to many of those countries , and have very good reputation just because we use high quality materials for insulators :


1 the insulator cap use high density ductile iron ,we test each piece of caps with magnetic powder testing method .

The insulator cap surface are hot galvanized , zinc thickness meet related IEC standard .

​that is Min. zinc thickness are more than 85μm . the galvanization surface are smooth and shinning , and free of defect.


2 The insulation parts are made of high aluminum porcelain C130 . the porcelain surface covered a layer of hard glaze , color brown , we can also produce such product with color white , grey or as per customer's specifications.


3 the material​ of R -clip is stainless steel which guarantee insulator string connection very safety .


4 we use excellent Portland cement to assemble porcelain body and related cap .​ even after years of servicing , the cement still keep good performance.


Applications:

L40BE200 supension long rod insulator are suitable for tension string or suspension string in transmission or distribution lines from 11kV , 25kV or 33kV .


Competitive Advantage:

L40BE200 supension long rod insulator have a very reliable electrical & machincal character .

the failure rate is lower than 1 per 100000 .

we offer 3 years quality guarantee period , if the product has inside defect , we will replace it free of charge .

The porcelain glaze are hard and shinning , it has very good self-cleaning advantage . it is easy for maintenance .

the insulator are non-punctured product . so the transmission line maintainese will be much more easier .
